HDbitT Video Matrix over IP Distribution System is the system integrating multiple HDMI sources at scattered locations, multiple HDMI displays, IR signal and control signals as a whole organic.
It applies advanced HDbitT video over IP technology, signal acquisition and transmission technology, audio and video codec technology, graphics and signal conversion technology, network communication technology and intelligent control technology, to provide users with a high resolution, high intelligent control, high stability audio and video processing terminal for comprehensive integrated engineerings, such as broadcasting, video conference, multimedia education, commercial and goverment subject, etc.

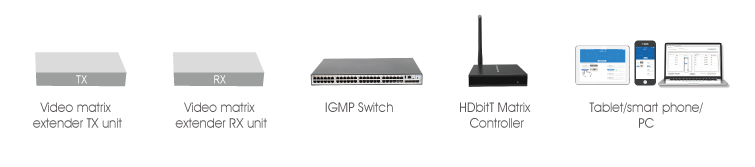

Elements of the system

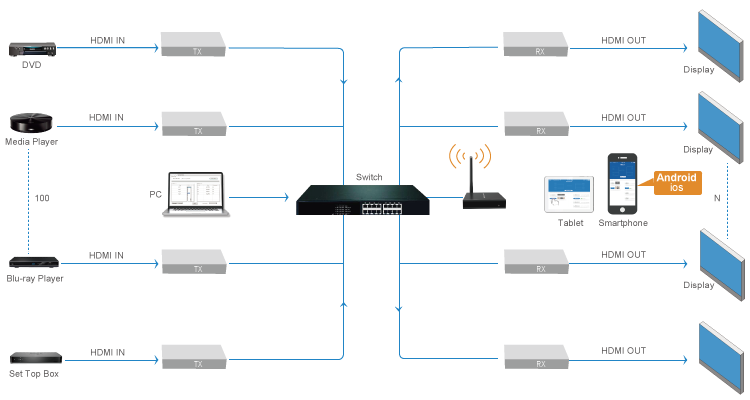

This system is composed of video matrix extender TX unit and RX unit, IGMP LAN switch, HDbitT Matrix Controller and Tablet (optional). Below is the drawing picture, by connected with the IGMP LAN switch via CAT-X cable, it can build up a many to many video solution with matrix function, allowing any source to be displayed on multiple displays simultaneously, and any HDMI display to view any source at the same time. The system supports up to 100 pcs Transmitters input and unlimited Receivers output for various size of installation.
By matching with HDbitT Matrix Controller, this system can be controlled by APP for smartphone (Android or ios) or tablet, to preview, edit and select the source device.
Download the APP “Matrix controller” for the Android phone by Click here, and go to the APP Store for the IOS phone. Both of them are free of charge.
No limitation to a certain amount of inputs and outputs, and transmit multiple HDMI signals over IP at different location are the biggest benifit of HDbitT Video Matrix over IP Distribution System: If you purchases another display or adds new sources, simply purchase more receivers and transmitters. You don't have to replace the whole system. The system supports up to 100pcs Transmitters input and unlimited Receivers output for various size of installation, and the delivering distance over single CAT-X cable is up to 120m/394ft.
Let’s compare a 4x4 HDMI matrix switching application using the traditional HDMI Matrix solution, the HDbitT over IP Modular Matrix system, and the HDbitT Video Matrix over IP Distribution System. Below are the examples of each matrix system:

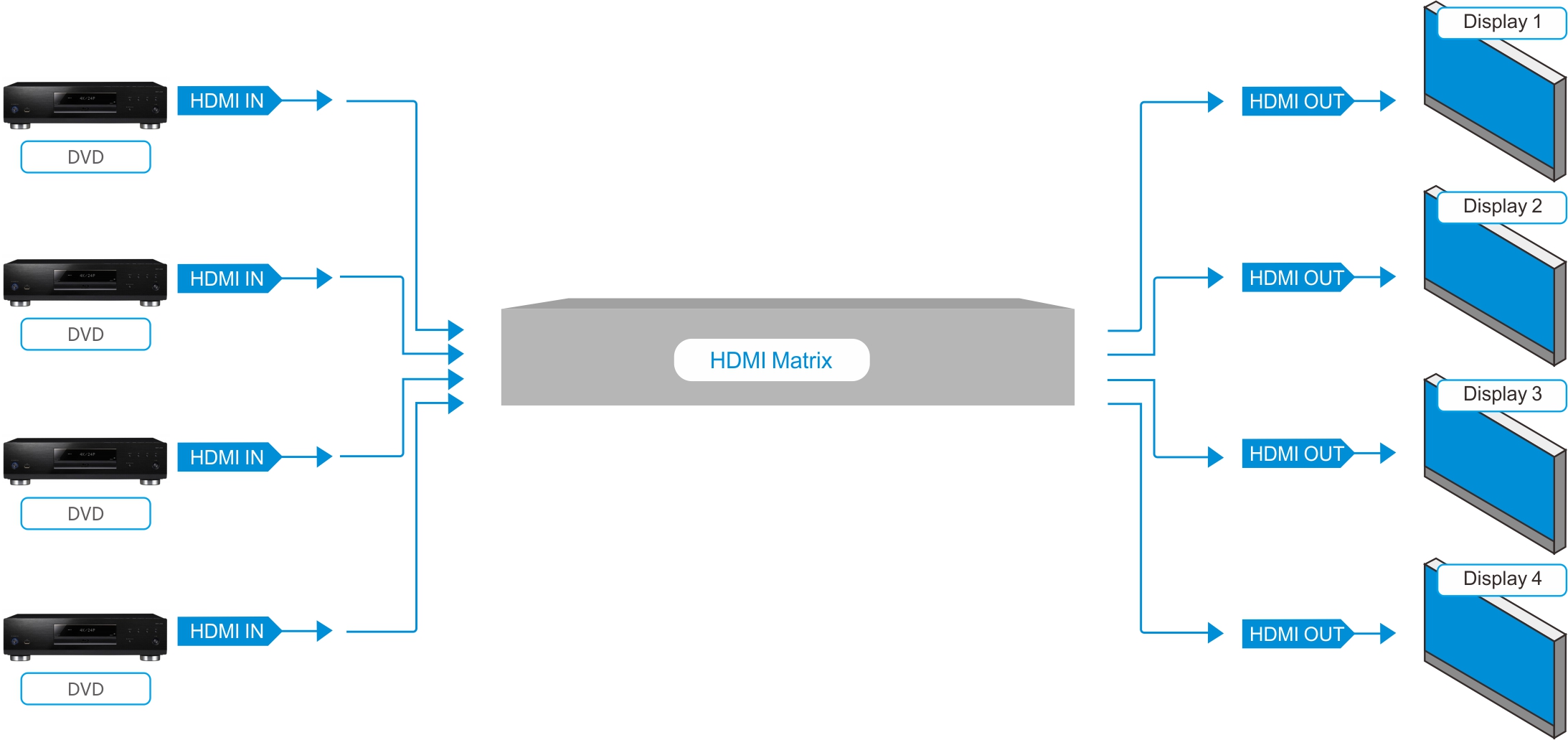

Fig.1 Traditional HDMI Matrix solution
Support 4 HDMI signal input, and 4 HDMI signal output, the delivety distance is depend on the HDMI cable.

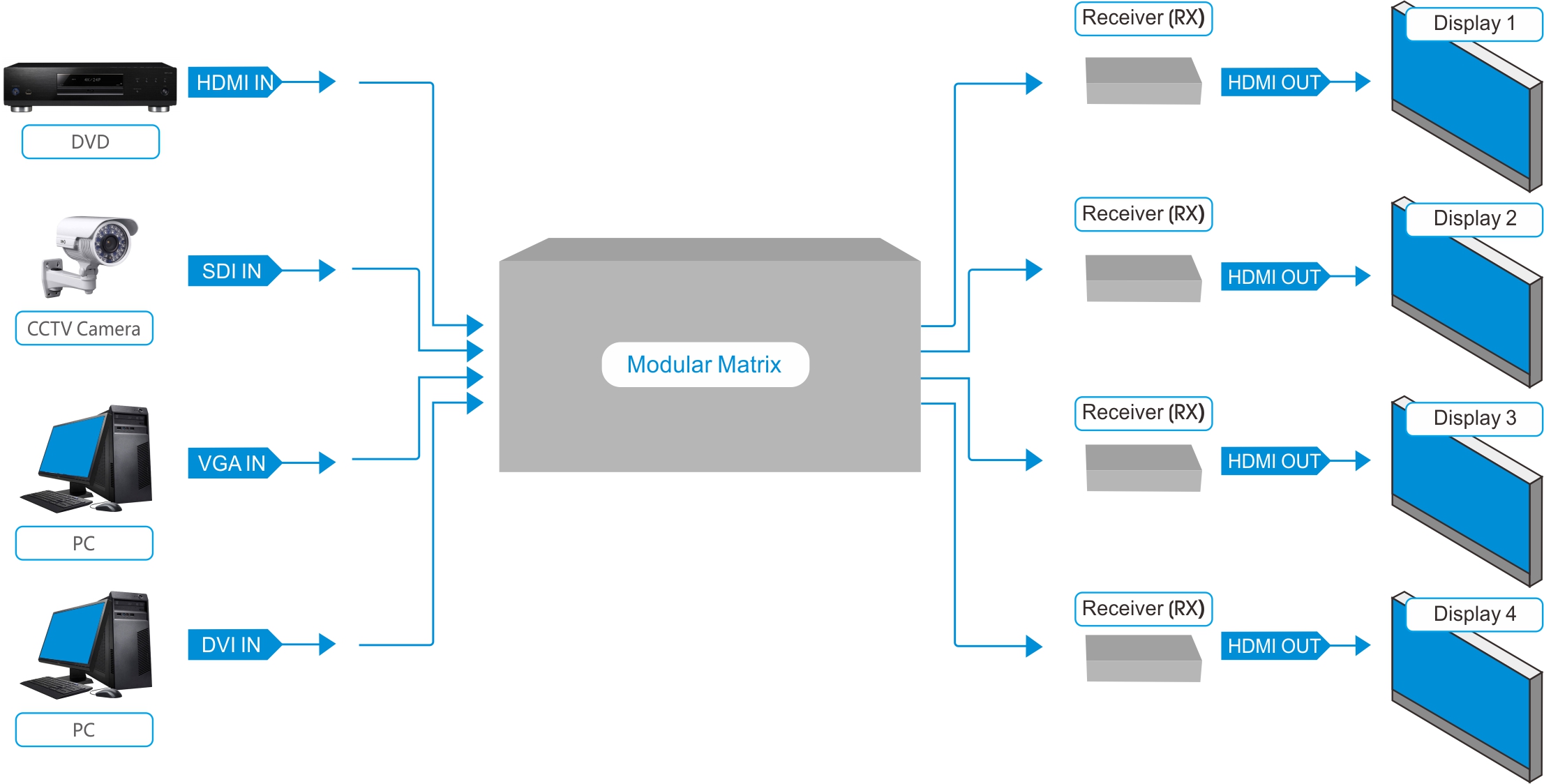

Fig.2 HDbitT over IP Modular Matrix system
Support 4 video signal input including HDMI/SDI/DVI/VGA, 4 HDMI signal output, the delivery distance is up to 120m over CAT5/5e/6, or up to 20 km over optical fiber cable.

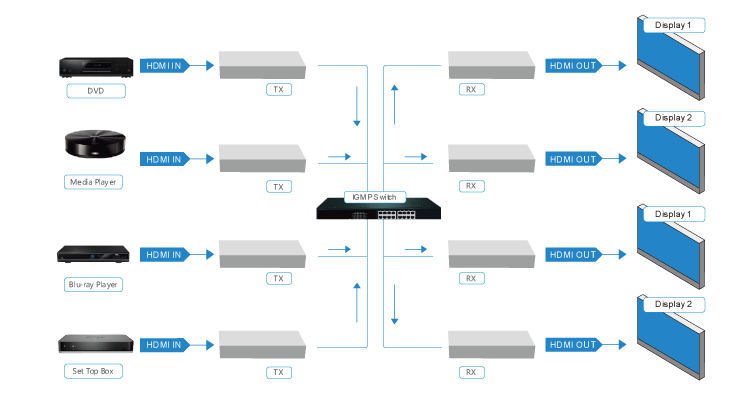

Fig.3 HDbitT over IP Video Distributed Matrix System
The transmitter and receiver can built up a 4 to 4 video extender matrix with IGMP LAN switch, support 4 HDMI signal input at different place , up to 120m between the LAN Switch, 4 HDMI signal output in different place up to 120m between the LAN Switch.

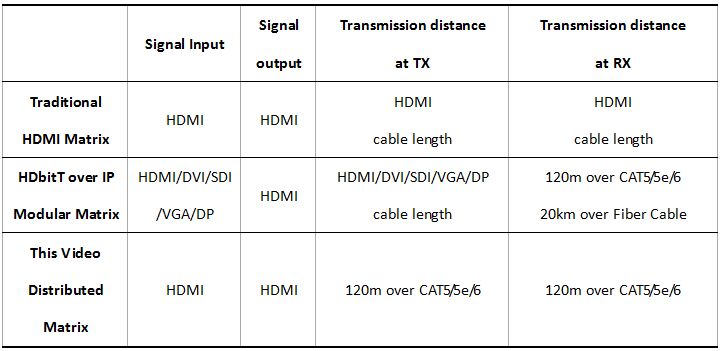

We can make conclusions as follows:
